Installation of Patent Roller Assembly Kit

[vc_row][vc_column][vc_column_text]

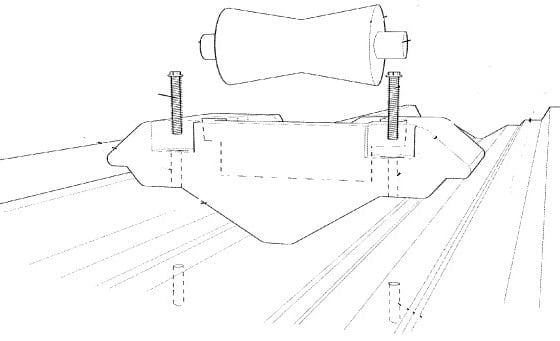

2 Bow stop Screws 1/4″ x 3/4″)1 Roller Assembly with keel wheelrollerassparts

Installation Of Patent Roller Assembly Kit


The Roller Assembly Kit can be
 placed at three different locations on the front of the main float. The set of inserts towards the back will raise the noise of your watercraft the most and add more weight towards the back. This setting is the easiest to drive your boat off the float. If your watercraft keeps on rolling off or will not stay on the float then move the roller assembly to the set of inserts towards the front. If you are still having the same issue then remove the rollerassembly kit completely. If problem persist then start taking every other set of rollers off on the rails.

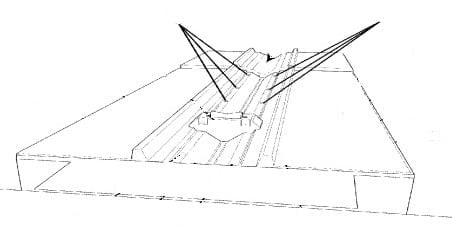

rollerass1

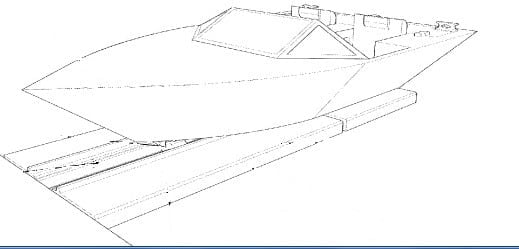

rollerass2
