Double Boat Fender Kit Installation (Side Mount)

Double Fender Attachment Kit:

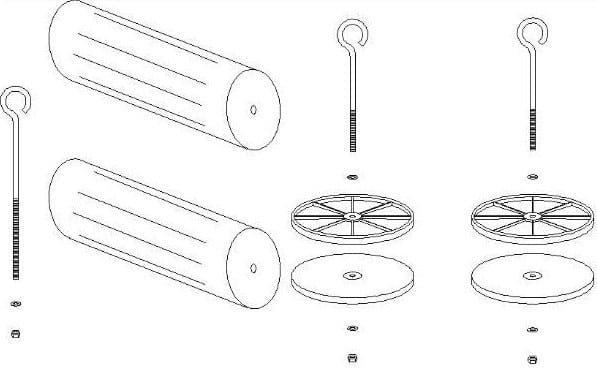

Double Fender Kit Includes:
Four Polyethylene Disks
Five washers & Nuts
One 9″ Eye Bolt
Two Boat Fender

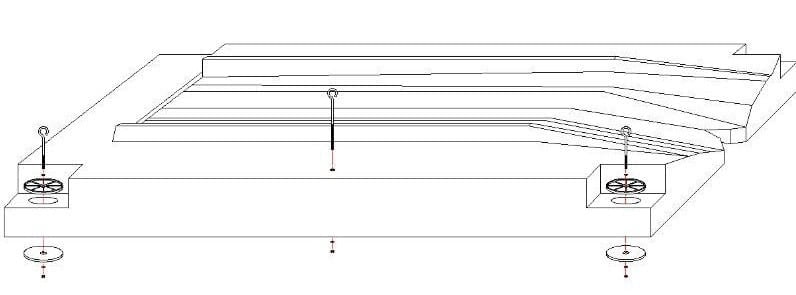

Place top disk over recess hole and run eye bolt through top disk hole through bottom disk

   hole. then use washers and lock nuts to tighten eye bolt & disk assembly

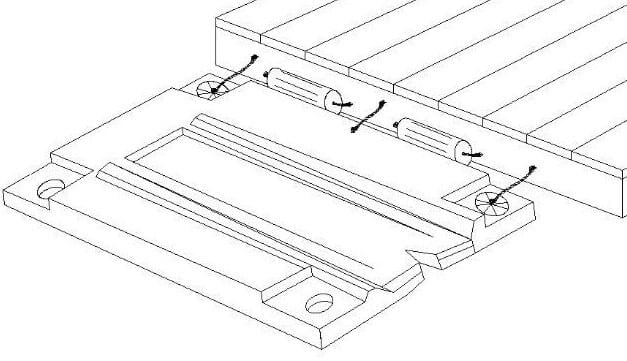

Install boat fender to floating dock and tighten rope from disks to eye screw on the floating dock. Frequent rope replacement may be needed for seasonal usage.
